SYS-6029TR-DTR
Print

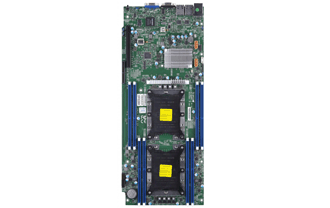

Intergrated Board
Key Features
- - HPC
- Virtualization
- Data Center
- Web Server
- Two hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:
- 1. Dual Socket P (LGA 3647) support 2nd Gen Intel® Xeon® Scalable processors (Cascade Lake/Skylake)‡
- 2. 8 DIMMs; up to 2TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM
- 3. 2 PCI-E 3.0 x8 (FH/HL) or 1 PCI-E 3.0 x8 (FH/HL) + 1 PCI-E 3.0 x4 (FH/HL) + 1 PCI-E 3.0 x 4 (LP) (8/8/0 or 8/4/4)
- 4. Dedicated IPMI 2.0 LAN
- 5. 6 Hot-swap 3.5" SATA3 drive bays
- 6. 2 SATA DOM + 1 SATA/NVMe
M.2 (22110/2280)
- 7. Up to 1200W Redundant Power Supplies Titanium Level (96%)
Specifications
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Titanium LevelParts List
 | |||
| Parts List - (Items Included) | |||
| |
Part Number |
Qty |
Description |
| Motherboard / Chassis | MBD-X11DPT-L CSE-827HD-R1K23BP3 |
2 1 |
Super X11DPT-L Motherboard 2U Chassis |
| Backplane | BPN-ADP-6SATA3M2-1UL | 2 | 6 x SATA3 with 6Gb/s,onboard 1 x M.2 . 22x80 mm and 22x110 mm,HF,RoHS |
| Backplane | BPN-SAS2-827HD2 | 1 | 2U 12-Port 2-Node 6Gbps Backplane Supports 6x3.5 |
| Cable 1 | CBL-PWCD-0900 | 2 | PWCD,US/EU/Canada/China/Australia,IEC60320 C14 TO C13,4FT,17AWG |
| Air Shroud | MCP-310-82721-0B | 2 | SC827HD mylar air shroud for on MBD-X11DPT-L-P |
| Manual | MNL-2164-QRG | 1 | 6029TR-DTR Quick Reference Guide |
| Riser Card | RSC-T2R-884 | 2 | 2U RHS Twin Riser card with two PCI-E x8 and one PCI-E x4 sl |
| Heatsink / Retention | SNK-P0068PS | 2 | 2U Passive CPU Heat Sink for X11 Purley Platform Equipped with a Narrow Retention Mechanism |
| Heatsink / Retention | SNK-P0069PS | 2 | 1.5U Proprietary 50-mm Tall Front Passive CPU Heat Sink for X11 Purley Platform 2U Node Twin Series Servers |
| Power Supply | PWS-1K23A-1R | 2 | AC-DC 1200W, Titanium Level, Redundancy, 1U, PMBUS 1.2, +12V/+5Vsb, 360x76x40 mm,HF,RoHS/REACH |
| FAN 1 | FAN-0129L4 | 4 | 80x80x38 mm 11K RPM SC217, SC827 Chassis Middle Fan |
| |||
| Optional Parts List | |||
| Part Number | Qty | Description | |
| TPM security module (optional, not included) | AOM-TPM-9670V | 1 | SPI capable TPM 2.0 with Infineon 9670 controller with vertical form factor |
| TPM security module (optional, not included) | AOM-TPM-9671V | 1 | SPI capable TPM 1.2 with Infineon 9670 controller with vertical form factor |
| Hot-swap 3.5" to 2.5" Hard Disk Drive Tray | MCP-220-00043-0N | - | Black Hot-swap gen 4 3.5" to 2.5" HDD tray |
| Global Services & Support | OS4HR3/2/1 OSNBD3/2/1 |
- - |
3/2/1-year onsite 24x7x4 service 3/2/1-year onsite NBD service |
| Software | SFT-OOB-LIC | 1 | OOB Management Package (per node license) |
| Software | SFT-DCMS-Single | 1 | DataCenter Management Package (per node license) |
|
|||
