    SYS-8049U-E1CR4T

    Print

    Key Features

    • - 4-Way MP
      - Up to 112 cores per system
      - In-Memory Database Application
      - ERP, CRM
      - Business Intelligence
      - Scientific Computing
      - Scale-up HPC
      - Cloud and Virtualization needs

    • 1. Quad Socket P (LGA 3647) support Gen. Intel® Xeon® Scalablecessors (Cascade Lake/Skylake)‡
    • 2. 48 DIMMs; up to 12TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM,
      Supports Intel® Optane™ DCPMM††
    • 3. 6 PCI-E 3.0 x16 slots, 10 PCI-E 3.0 x8 slots Up to 6 double width passive GPUs
    • 4. 4x 10GBase-T LAN ports via AOC-4UR66-I4XTF-P
    • 5. 24 Hot-swap 3.5" SAS3/SATA3 drive bays supported via optional Add-on RAID controller card; 8 Hybrid ports with NVMe support via optional AOC
    • 6. 8x 9cm heavy duty fans
    • 7. 1600W (3+1) Redundant Power Supplies, Platinum Level (96%)
    Specifications
    Product SKUs
    SYS-8049U-E1CR4T
    • SuperServer 8049U-E1CR4T (Black)
    Motherboard

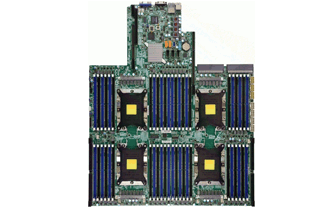

    Super X11QPH+
    Processor/Cache
    CPU
    • Quad Socket P (LGA 3647)
    • 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors,
      3 UPI up to 10.4GT/s
    • Support CPU TDP 70-205W
    Cores
    • Up to 28 Cores
    Note BIOS version 3.0a or above is required to support 2nd Gen Intel® Xeon® Scalable processors
    System Memory
    Memory Capacity
    • 48 DIMM slots
    • Up to 12TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM
    • Supports Intel® Optane™ DCPMM††
    Memory Type
    • 2933/2666MHz ECC DDR4 RDIMM/LRDIMM
    Note 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro
    †† Cascade Lake only. Contact your Supermicro sales rep for more info.
    On-Board Devices
    Chipset
    • Intel® C621 chipset
    SATA
    • SATA3 (SSD only) via Intel C621; RAID 0, 1
    Network Connectivity
    IPMI
    • Support for Intelligent Platform Management Interface v.2.0
    • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
    Graphics
    • ASPEED AST2500 BMC
    Input / Output
    SATA
    • 2 SATA3 (SSD only) (6Gbps) ports at rear
    SAS
    • 24 SAS3 ports support via optional Add-on Cards
    NVMe
    • 8 Hybrid ports with NVMe support via AOC
    LAN
    • 4x 10GBase-T RJ45 LAN ports
    • 1 RJ45 Dedicated IPMI LAN port
    USB
    • 2 USB 3.0 ports (rear)
    Video
    • 1 VGA Connector
    Serial Port / Header
    • 1 COM port (rear)
    DOM
    • 2 SuperDOM (Disk on Module) ports
    System BIOS
    BIOS Type
    • 128Mb SPI Flash EEPROM with AMI BIOS
    Management
    Software
    Power Configurations
    • ACPI Power Management
    • Power-on mode for AC power recovery
    PC Health Monitoring
    CPU
    • Monitors for CPU Cores, Chipset Voltages, Memory.
    • 4+1 Phase-switching voltage regulator
    FAN
    • Fans with tachometer monitoring
    • Status monitor for speed control
    • Pulse Width Modulated (PWM) fan connectors
    Temperature
    • Monitoring for CPU and chassis environment
    • Thermal Control for fan connectors
    Chassis
    Form Factor
    • 4U Rackmount
    Model
    • CSE-848UTS-R4800P
    Dimensions and Weight
    Width
    • 17.2" (437mm)
    Height
    • 6.9" (177mm)
    Depth
    • 34.5" (876mm)
    Weight
    • Net Weight: 74.5 lbs (33.79 kg)
    • Gross Weight: 115 lbs (52.16 kg)
    Available Colors
    • Black
    Front Panel
    Buttons
    • Power On/Off button
    • System Reset button
    LEDs
    • Power status LED
    • HDD activity LED
    • Network activity LEDs
    • System information (overheat/UID) LED
    Expansion Slots
    PCI-Express
    • 6 PCI-E 3.0 x16 slots
    • 10 PCI-E 3.0 x8 slots

      (4 CPUs need to be installed for full access to PCI-E slots and onboard controllers. See AOC Support for details.)
    Drive Bays
    Hot-swap
    • 24 Hot-swap 3.5" SAS3/SATA3 drive bays
    • Optional 24 SAS3 ports via AOC
    • Optional 16 SAS3 ports via AOC + 8 NVMe ports via AOC
    System Cooling
    Fans
    • 8x 9cm heavy duty fans with speed control
    AC/DC240V Input Redundant Power Supply
    1000 / 1600W 1U Redundant Power Supply
    Total Output Power
    • 1000W: 100 – 127Vac
    • 1600W: 200 – 240Vac
    • 1600W: 200 – 240Vdc (for CCC only)
    Dimension
    (W x H x L)
    • 73.5 x 40 x 185 mm
    Input
    • 100 -- 127Vac / 13.8A / 47-63Hz
    • 200 -- 240Vac / 9.6A / 47-63Hz
    • 200 -- 240Vdc / 8.5A (CCC Only)
    +12V
    • Max: 83A / Min: 0A (1000W)
    • Max: 132A / Min: 0A (1600W)
    12Vsb
    • Max: 2.1A / Min: 0A
    Output Type
    • Gold Finger
    Certification Platinum Level Certified Platinum Certified
    Operating Environment
    RoHS
    • RoHS Compliant
    Environmental Spec.
    • Operating Temperature:
      10°C ~ 35°C (50°F ~ 95°F)
    • Non-operating Temperature:
      -40°C to 60°C (-40°F to 140°F)
    • Operating Relative Humidity:
      8% to 90% (non-condensing)
    • Non-operating Relative Humidity:
      5% to 95% (non-condensing)

    Parts List
    Parts List - (Items Included)

    Part Number
    Qty
    Description
    Motherboard / Chassis MBD-X11QPH+
    CSE-848UTS-R4800P
    1
    1
    Super X11QPH+ Motherboard
    4U Chassis
    Add-on Card / Module AOC-4UR66-I4XTF-P 1 4U Ultra Riser 4-port 10GbE RJ45, based on Intel XL710-BM1 and Intel X557-AT4 (PHY), 2 PCI-E 3.0 x16 slot.,RoHS
    Backplane BPN-SAS3-826TQ-B2B 1 2-port 2U SAS3 12Gbps backplane, support up to 2x 2.5-inch SAS3/SATA3 HDD/SSD
    Backplane BPN-SAS3-846EL1-N8 1 24-Port 4U Expander Backplane Support up-to 16x 3.5" SAS3/SATA3 HDD/SSD and 8 x SAS3/SATA3/NVMe Storage Devices
    Cable 1 CBL-0118L-03 1 MINI SAS-4 SATA,INT,23CM,25.5CM SB,30AWG
    Cable 2 CBL-0449L 1 HDD power extension for X8OBN, special 8 pin to 4 HDD. 45cm. 18AWG
    Cable 3 CBL-PWEX-0673 2 8 pin female to 2x big 4 pin female power, 65/70CM, 18AWG,RoHS/REACH
    Cable 4 CBL-PWEX-0702 1 PWEX,2X4F/P4.2 TO 1X4F/P5.08/RA,32CM,18AWG,YEL,BLK*2,RED
    Riser Card RSC-R1UW-E8R 1 1U RHS WIO Riser card with one PCI-E x8 slot
    Riser Card RSC-R2UW-4E8 1 2U LHS WIO Riser card with four PCI-E x4 slots
    Riser Card RSC-S4-A6688 1 2U RHS Active Standard Riser Card with 2 PCI-E x8 Slots
    Riser Card RSC-S4R-A66888 1 2U RHS Active Standard Riser Card with Three PCI-E x8 Slot
    Heatsink / Retention SNK-P0068PS 4 2U Passive CPU Heat Sink for X11 Purley Platform Equipped with a Narrow Retention Mechanism
    Power Supply PWS-1K69P-1R 4 AC-DC 1600W at high and 1000W at low line, Platinum Level
    Optional Parts List

    Part Number
    Qty
    Description
    2.5" Converter Trays MCP-220-00166-0B 1~24 Gen-5.5 hot-swap tool-less 3.5-to-2.5 converter tray
    Intel VROC HW Key AOC-VROCPREMOD

    AOC-VROCSTNMOD

    AOC-VROCINTMOD
    1

    1

    1
    Intel VROC HW Key (RSTe) - Premium, RAID 0, 1, 5, 10

    Intel VROC HW key (RSTe) - standard upgrade module

    Intel VROC HW key (RSTe), Intel SSD only
    Active Cooling GPU GPU-NVQM6000

    GPU-NVQM6000-24

    GPU-NVQGV100
    -

    -

    -
    NVIDIA PNY Quadro M6000 12GB GDDR5 PCIe 3.0

    NVIDIA PNY Quadro M6000 24GB GDDR5 PCIe3.0-ActiveCooling

    NVIDIA PNY Quadro GV100 32GB HBM2 PCIe 3.0- Active Cooling
    Passive Cooling GPU GPU-NVTV100-16

    GPU-NVTV100-32

    GPU-NVTT4
    -

    -

    -
    NVIDIA Tesla V100 16GB HBM2 PCIe 3.0 -- Passive Cooling

    NVIDIA Tesla V100 32GB CoWoS HBM2 PCIe 3.0--Passive Cooling

    NVIDIA Tesla T4 16GB GDDR6 PCIe 3.0-- Passive Cooling 70
    GPU Power Cable CBL-PWEX-1042

    CBL-PWEX-1040

    CBL-PWEX-0665
    1/GPU

    1/GPU

    1/GPU
    GPU power cable - CPU 8 pin female to CPU 8 pin female, 50cm

    GPU power cable adapter - CPU 8 pin female to two PCIe 6+2 pin female, 5CM

    GPU power cable - PCIe 8 pin female (black) to CPU 8 pin female (white), 30cm
    GPU Air Shroud MCP-310-84808-0B 1/GPUx2 GPU Mylar air shroud in SC848U,HF,RoHS/REACH
    GPU Rear Fan Kit MCP-240-84807-0N 1/GPUx2 GPU Rear Fan Assembly Kit (for passive GPU only)
    PCIe I/O bracket MCP-120-00110-0N 1-2 PCIe I/O bracket w/o hole (solid)
    CacheVault(s) BTR-TFM8G-LSICVM02 &

    BKT-BBU-BRACKET-05
    1 CacheVault for Broadcom 3108;

    Supercap mounting bracket for PCI-E location
    Network Card(s) AOC-MCX556A-ECAT


    AOC-S40G-i2Q

    AOC-S25G-m2S

    AOC-SGP-i2

    AOC-SGP-i4

    AOC-STG-b4S

    AOC-STGN-i2S

    AOC-STGN-i1S

    AOC-STG-i2T
    -


    -

    -

    -

    -

    -

    -

    -

    -
    Mellanox ConnectX-5 VPI adapter card, EDR IB (100Gb/s) and 100GbE, dual-port QSFP28, PCIe3.0 x16, tall bracket, HF, RoHS

    Standard LP 2-port 40GbE controller, based on Intel Fortville XL710

    Std LP 2-port 25G SFP28, Mellanox ConnectX-4 LX EN

    Standard LP, 2x GbE RJ45, PCI-E x4, Intel i350AM2

    Standard LP, 4x GbE RJ45, PCI-E x4, Intel i350

    Standard LP, 4x 10GbE SFP+, PCI-E x8, Broadcom BCM57840S

    Standard LP, 2x 10GbE SFP+, PCI-E x8, Intel 82599ES

    Standard LP, 1x 10GbE SFP+, PCI-E x8, Intel 82599EN

    Standard LP, 2x 10GbE RJ45, PCI-E x8, Intel X540
    Cable ARM Kits MCP-290-00127-0N

    MCP-290-00128-0N
    1

    1
    39" rail set, quick/quick, 17.2"W, for Gen2 cable arm

    Gen2 cable arm for Ultra
    Global Services & Support OS4HR3/2/1


    OSNBD3/2/1
    -


    -
    3/2/1-year onsite 24x7x4 service


    3/2/1-year onsite NBD service
    Software SFT-OOB-LIC 1 OOB Management Package (per node license)
    Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)
    Storage Options List
    Cases
    AOC
    Cable
    Connection
    For 24 SAS3 HDD AOC-S3008L-L8i x1 or

    AOC-S3108L-H8iR x1
    CBL-SAST-0593 x2 PCI-E slot 16
    For 16 SAS3/SATA HDD

    +

    8 U.2 NVMe SSD
    AOC-S3008L-L8i x1 or

    AOC-S3108L-H8iR x1 or

    AOC-S3108L-H8iR-16DD x1

    AOC-SLG3-4E4T x2 or

    (*)AOC-SLG3-8E2P x1
    CBL-SAST-0593 x2





    CBL-SAST-0848 x2 &

    CBL-SAST-0820 x6 &

    CBL-CDAT-0728 x1
    PCI-E slot 16





    PCI-E slot 12 & 14

    PCI-E slot 14


    (*) AOC-SLG3-8E2P x1 can replace AOC-SLG3-4E4T x2, but only half bandwidth support
    Hide Parts List
