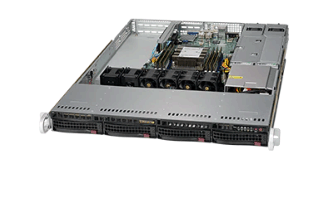

    SYS-5019P-WTR

    Print

    Key Features

    • - DB Processing & Storage
      - Data Center Applications
      - Firewall Applications

    • 1. Single Socket P (LGA 3647) supports 2nd Gen Intel® Xeon® Scalable processor (Cascade Lake/Skylake)‡
    • 2. 6 DIMMs; up to 1.5TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM
    • 3. 2 PCI-E 3.0 x16 (FHFL) slots,
      1 PCI-E 3.0 x8 (LP) slot
    • 4. 4 Hot-swap 3.5" SATA3 drive bays
    • 5. 2x 10GBase-T ports with Intel X722 + X557
    • 6. 1 VGA, 2 COM, 2 USB 3.0, 2 USB 2.0
    • 7. 2 SuperDOM (Disk on Module) ports
    • 8. 500W Redundant power supplies Platinum Level Certified
    Specifications
    Product SKUs
    SYS-5019P-WTR
    • SuperServer 5019P-WTR (Black)

    Motherboard

    Super X11SPW-TF

    Processor/Cache
    CPU
    • Single Socket P (LGA 3647)
    • 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors
    • Support CPU TDP 70-205W*
    Cores
    • Up to 28 Cores
    Note * Certain high frequency optimized CPU are not supported, such as Intel Gold 6250 and 6256. Please contact Supermicro Technical Support for additional information.
    Note BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R)

    System Memory
    Memory Capacity
    • 6 DIMM slots
    • Up to 1.5TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM
    Memory Type
    • 2933/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM
    Note 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro
    †† Cascade Lake only. Contact your Supermicro sales rep for more info.

    On-Board Devices
    Chipset
    • Intel® C622 chipset
    SATA
    • SATA3 (6Gbps); RAID 0, 1, 5, 10
    Network Controllers
    • Dual 10GBase-T LAN with Intel® X722 + X557
    IPMI
    • Support for Intelligent Platform Management Interface v.2.0
    • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
    Video
    • ASPEED AST2500 BMC

    Input / Output
    SATA
    • 10 SATA3 (6Gbps) ports
    LAN
    • 2 RJ45 10GBase-T LAN ports
    • 1 RJ45 dedicated IPMI LAN port
    USB
    • 5 USB 3.0 ports (2 rear + 2 headers + 1 Type A)
    • 7 USB 2.0 ports (2 rear + 5 headers)
    Video
    • 1 VGA port
    Serial Port / Header
    • 2 COM ports (1 rear, 1 header)
    SuperDOM
    • 2 SuperDOM (Disk on Module) ports with built-in power

    System BIOS
    BIOS Type
    • AMI 32Mb SPI Flash ROM

    Management
    Software
    Power Configurations
    • ACPI / APM Power Management

    PC Health Monitoring
    CPU
    • Monitors for CPU Cores, Chipset Voltages, Memory.
    • 4+1 Phase-switching voltage regulator
    FAN
    • Fans with tachometer monitoring
    • Status monitor for speed control
    • Pulse Width Modulated (PWM) fan connectors
    Temperature
    • Monitoring for CPU and chassis environment
    • Thermal Control for fan connectors
    Chassis
    Form Factor
    • 1U Rackmount
    Model

    Dimensions and Weight
    Height
    • 1.7" (43mm)
    Width
    • 17.2" (437mm)
    Depth
    • 25.6" (650mm)
    Package
    • 23.5" (W) x 8.5" (H) x 33.7" (L)
    Weight
    • Gross Weight: 48 lbs (21.77 kg)
    • Net Weight: 24 lbs (10.89 kg)
    Available Colors
    • Black

    Front Panel
    Buttons
    • Power On/Off button
    • System Reset button
    LEDs
    • Power LED
    • Hard drive activity LED
    • Network activity LEDs
    • System Information LED
    • Information LED (temp., status)

    Expansion Slots
    PCI-Express
    • 2 PCI-E 3.0 x16 (FHFL) slots
    • 1 PCI-E 3.0 x8 (LP) slot
    M.2
    • 1x M.2 Interface: PCI-E 3.0 x4 and SATA
    • Form Factor: 2280, 22110
    • Key: M-Key
    • Double Height Connector

    Drive Bays
    Hot-swap
    • 4 Hot-swap 3.5" SATA3 drive bays

    System Cooling
    Fans
    • 5 Counter-rotation 40x56mm PWM fans
    • 1 fan for AOC cooling (option)

    Power Supply
    500W Redundant Power Supplies with PMBus
    Total Output Power
    • 500W: 100 – 240Vac
    Dimension
    (W x H x L)
    • 54.5 x 40.25 x 320 mm
    Input
    • 100-240Vac, 50-60Hz, 6.1-2.6A
    +12V
    • Max: 42A / Min: 0.5A
    +5Vsb
    • Max: 4A / Min: 0A
    Output Type
    • Gold Finger Connector Mating with Molex 45984-4343
    With Power Distributor
    • +5V: 25A
    • +3.3V: 12A
    • -12V: 0.6A
    Certification Platinum Level Certified   Platinum Certified
      [ Test Report ]

    Operating Environment
    RoHS
    • RoHS Compliant
    Environmental Spec.
    • Operating Temperature:
         10°C ~ 35°C (50°F ~ 95°F)
    • Non-operating Temperature:
         -40°C to 70°C (-40°F to 158°F)
    • Operating Relative Humidity:
         8% to 90% (non-condensing)
    • Non-operating Relative Humidity:
         5% to 95% (non-condensing)

    Parts List
    Parts List - (Items Included)

    Part Number
    Qty
    Description
    Motherboard / Chassis MBD-X11SPW-TF
    CSE-815TQC-R504WB2
    1
    1
    Super X11SPW-TF Motherboard
    1U Chassis
    Backplane BPN-SAS3-815TQ 1 1U 4-Port 12Gbps Backplane Support 4x3.5
    Cable 1 CBL-0180L-01 1 SATA,INT,ROUND,SET OF 4,ST-RA 70/59/48/38CM,26AWG
    Cable 2 CBL-0296L 1 4 pin to 4 pin fan extension cord, for PWM fan. 23cm. 24AWG
    Cable 3 CBL-CDAT-0660 1 CBL,SGPIO,2X4F TO 2X4F,P2.54,ROUND CABLE,27CM,28AWG
    FAN 1 FAN-0156L4 2 40x40x56 mm 13K-11K RPM Counter-rotating Fan,RoHS/REACH
    Manual MNL-1921-QRG 1 5019P-WT/WTR, QRG,HF,RoHS/REACH
    Riser Card RSC-R1UW-2E16 1 1U LHS WIO Riser card with two PCI-E x16 slots
    Riser Card RSC-R1UW-E8R 1 1U RHS WIO Riser card with one PCI-E x8 slot
    Heatsink / Retention SNK-P0067PS 1 1U Passive CPU Heat Sink for X11 Purley Platform Equipped with a Narrow Retention Mechanism
    * Power Supply PWS-504P-1R 2 500W 1U Redundant PWS W/ 54.5MM Wide
    * Power Distributor PDB-PT112-S2424 1 WIO X11 Support,PDB-PT112-S2424 is based on PDB-PT112-2424
    * Cable 4 CBL-0335L 1 CBL,FRONT CNTL,20 TO 20 PIN,RA,RND TUBE,73CM,28AWG
    * Cable 5 CBL-PWCD-0160-IS 2 PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,13A,125V,RoHS/REACH
    * Fan Holder CSE-PT0135 1 FAN HOLDER FOR SIX 40X56MM COUNTER ROTATING FANS
    * Peripheral Drive 1 CSE-PT93L-B 1 Black DVD dummy cover for SC813, 813M, 815, PBF-RoHS
    * FAN 2 FAN-0156L4 3 40x40x56 mm 13K-11K RPM Counter-rotating Fan,RoHS/REACH
    * Front Panel FPB-FP815U 1 815 UIO front control board (U)
    * Parts MCP-120-00030-0N 1 Blank LP L-bracket (1 raw of capsule hole)
    * Parts MCP-120-00053-0N 2 Blank FH L bracket w/o SCSI cutout for SC825,836,846,743
    * Drive Tray(s) MCP-220-00075-0B 4 Black gen 5.5 hot-swap 3.5"; HDD tray
    * Rear Window MCP-240-00098-0N 1 WIO rear window for SC113,SC116, SC815 Redundant PWS
    * Power Supply MCP-250-81502-0N 1 SC815 Redundant Power Distributor Cover
    * Rail Set MCP-290-00054-0N 1set Rail set, quick/quick, optional for 1U 17.2
    * Fan Holder MCP-340-00035-0B 3 Dummy fan 40x56mm for 40x56 counter-rotating fan (cost-effective)
    Notes:
    1. Parts with * are inside the chassis
    2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
    Optional Parts List

    Part Number
    Qty
    Description
    GPU Optional Parts FAN-0141L4
    MCP-310-81504-0B
    2
    1
    40x40x56mm 20.5K RPM, Counter-rotation fan
    Air shroud for Tesla T4 GPU
    3.5" to 2.5" Converter Tray MCP-220-00043-0N - Black Hot-swap Gen-4 2.5" to 3.5" HDD tray
    DVD-ROM / DVD-RW DVM-TEAC-DVD-SBT5
    DVM-PLDS-DVDRW-SBT5
    1
    1
    TEAC slim DVD-ROM SATA drive
    PHILPS slim DVD-RW SATA drive
    DVD-ROM Accessory MCP-220-81502-0N 1 Slim SATA DVD mounting kit
    Internal 2.5" HDD Tray (FDD slot) MCP-220-83601-0B 1 Black FDD dummy tray support 1x 2.5" slim HDD
    Internal 2.5" HDD Tray (DVD slot) MCP-290-00036-0B 1 Black DVD dummy tray support 1x 2.5" slim HDD
    Cable for internal HDD CBL-0484L
    CBl-0289L
    2
    1
    55cm 30AWG SATA straight to straigh cable
    Y split, big 4 pin to two RA SATA power estenstion 30cm
    Hot-swap 2.5" kit (FDD slot) MCP-220-81504-0N 1 Single slim 2.5" SAS3 (12Gb/s) hot swap in slim FDD form factor
    Hot-swap 2.5" kit (DVD slot) MCP-220-81506-0N 1 Single slim 2.5" SAS3 (12Gb/s) hot swap in slim DVD form factor
    USB/COM port tray (FDD slot) MCP-220-00129-0B 1 Black 2x USB3.0/COM port tray in slim FDD form factor
    Cooling Fan FAN-0156L4 - 40x40x56mm 13K-11K RPM Counter-rotating Fan
    Storage Controller card & cable AOC-S3108L-H8iR
    & 1x CBL-SAST-0699
    AOC-S3108L-H8iR-16DD
    & 1x CBL-SAST-0699
    AOC-S3008L-L8i
    & 1x CBL-SAST-0699
    AOC-S3008L-L8e
    & 1x CBL-SAST-0699
    - Standard LP, 8 Internal ports (12Gb/s) PCI-E 3.0 x8,
    RAID controller, RAID 0, 1, 5, 6, 10, 50, 60
    Standard LP, 8 Internal ports (12Gb/s) PCI-E 3.0 x8,
    16HDD RAID controller, RAID 0, 1, 5, 6, 10, 50, 60
    Standard LP, 8 internal ports (12Gb/s) PCI-E 3.0 x8,
    63HDD, RAID 0, 1, 10
    Standard LP, 8 internal ports (12Gb/s) PCI-E 3.0 x8,
    122HDD HBA
    CacheVault BTR-CV3108-1U1
    BTR-TFM8G-LSICVM02 &
    BKT-BBU-BRACKET-05
    -
    -
    CacheVault for Broadcom 3108 with SuperCap mounting in 1Y 40x56 fan tray
    CacheVault for Broadcom 3108 with SuperCap mounting bracket for PCI-E location
    Network Card(s) AOC-SGP-i2
    AOC-SGP-i4
    AOC-STGN-i2S
    AOC-STGF-i2S
    AOC-STG-B4S
    AOC-STGS-i2T
    AOC-S25G-b2S
    AOC-S25G-m2S
    -
    -
    -
    -
    -
    -
    -
    -
    Standard LP, 2x GbE RJ45, PCI-E x4, Intel i350-AM2
    Standard LP, 4x GbE RJ45, PCI-E x4, Intel i350
    Standard Lp, 2x 10GbE SFP+, PCI-E x8, Intel 82599ES
    Standard Lp, 2x 10GbE SFP+, PCI-E x8, Intel X710-BM2
    Standard Lp, 4x 10GbE SFP+, PCI-E x8, Broadcom BCM57840S
    Standard Lp, 2x 10GbE RJ45, PCI-E x8, Intel X550-AT2
    Standard LP, 2x 25GbE SFP28, PCI-E x8, Broadcom BCM57414
    Standard LP, 2x 25GbE SFP28, PCI-E x8, Mellanox CX-4 LX
    Front Bezels CSE-PTFB-813LB
    CSE-PTFB-813-02B
    -
    -
    Black front bezels
    Black Front Bezel w/ Round Venting Holes
    TPM security module AOM-TPM-9670V
    AOM-TPM-9671V
    1
    1
    TPM 2.0, vertical form factor
    TPM 1.2, vertical form factor
    Global Services & Support OS4HR3/2/1
    OSNBD3/2/1
    -
    -
    3/2/1-year onsite 24x7x4 service
    3/2/1-year onsite NBD service
    Software SFT-OOB-LIC 1 OOB Management Package (per node license)
    Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)
