    SYS-5019S-MR

    Print
    Intergrated Board

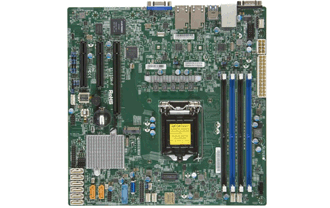

    X11SSH-F
    Views Angled ViewsTop ViewsFront ViewsRear Views

    Key Features

    • - HA, Web hosting, File/Print
      - Mission-Critical, Light load VM
    • 1. Single Socket H4 (LGA 1151) supports Intel® Xeon® processor E3-1200 v6/v5, Intel® 7th/6th Gen. Core™ i3 series
    • 2. Intel® C236 chipset
    • 3. 4 Hot-swap 3.5" SATA3 bays w/ RAID
    • 4. Up to 64GB Unbuffered ECC UDIMM DDR4 2400MHz; 4 DIMM slots
    • 5. 1 PCI-E 3.0 x8 (in x16) AOC slot
    • 6. 2 GbE ports with Intel® i210-AT
    • 7. Integrated IPMI 2.0 and KVM with Dedicated LAN
    • 8. 1 VGA, 2 COM, 4 USB 3.0, 2 USB 2.0
    • 9. 400W Redundant Platinum Power Supplies w/ BBP® option
    Specifications
    Product SKUs
    SYS-5019S-MR
    • SuperServer 5019S-MR (Black)

    Motherboard

    Super X11SSH-F

    Processor/Cache
    CPU
    • Single Socket H4 (LGA 1151) supports:
    • Intel® Xeon® processor E3-1200 v6/v5,
      Intel® 7th/6th Gen Core™ i3
    • CPU TDP up to 80W
    Note BIOS version 2.0 or above is required to support Intel® Xeon® Processor E3-1200 v6 series or 7th Generation Intel® Core™ Processors

    System Memory
    Memory Capacity
    • 4x 288-pin DDR4 DIMM slots
    • Up to 64GB DDR4 ECC UDIMM
    Memory Type
    • 2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit, 288-pin (UDIMM) gold-plated DIMMs
    DIMM Sizes
    • 16GB, 8GB, 4GB
    Memory Voltage
    • 1.2 V
    Error Detection
    • Corrects single-bit errors
    • Detects double-bit errors (using ECC memory)

    On-Board Devices
    Chipset
    • Intel® C236 chipset
    SATA
    • SATA3 (6Gbps) via C236 controller
    • RAID 0, 1, 5, 10 support
    IPMI
    • Support for Intelligent Platform Management Interface v.2.0
    • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
    • ASPEED AST2400 BMC
    Network Controllers
    • Dual Intel® I210-AT Gigabit Ethernet LAN ports
    • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
    Video
    • ASPEED AST2400 BMC

    Input / Output
    SATA
    • 8 SATA3 (6Gbps) ports
    LAN
    • 2 RJ45 Gigabit Ethernet LAN ports
    • 1 RJ45 Dedicated IPMI LAN port
    USB
    • 5 USB 3.0 ports (2 rear + 2 headers + 1 Type A)
    • 6 USB 2.0 ports (2 rear + 4 headers)
    Video
    • 1 VGA port
    Serial Port / Header
    • 2 COM ports (1 rear, 1 front)
    SuperDOM
    • 2 SuperDOM (Disk on Module) ports with built-in power

    PC Health Monitoring
    Voltage
    • Monitors for CPU Cores, +3.3V, +5V, +12V, +5V Standby, VBAT, HT, Memory, Chipset Voltages.
    FAN
    • Total of 5 fan headers supporting up to 5 fans
    • 4 fans with tachometer status monitoring
    • Status monitor for speed control
    • Status monitor for on/off control
    • Low noise fan speed control
    • Pulse Width Modulated (PWM) fan connectors
    Temperature
    • Monitoring for CPU and chassis environment
    • CPU thermal trip support
    • I2C temperature sensing logic
    • Thermal Monitor 2 (TM2) support
    • PECI
    LED
    • System Information LED
    • Suspend static indicator LED
    • UID/Remote UID
    Other Features
    • Chassis intrusion detection
    • Chassis intrusion header
    • RoHS, Halogen Free
    Chassis
    Form Factor
    • 1U Rackmount
    Model

    Dimensions and Weight
    Height
    • 1.7" (43mm)
    Width
    • 17.2" (437mm)
    Depth
    • 19.85" (503mm)
    Package
    • 8.5" (H) x 24" (W) x 29.5" (D)
    Weight
    • Gross Weight: 33 lbs (15.0 kg)
    • Net Weight: 20 lbs (9.1 kg)
    Available Colors
    • Black

    Front Panel
    Buttons
    • Power On/Off button
    • System Reset button
    LEDs
    • Power LED
    • Hard drive activity LED
    • 2 Network activity LEDs
    • System Information LED

    Expansion Slots
    PCI-Express
    • 1 PCI-E 3.0 x8 (in x16) AOC slot
    M.2
    • 1x M.2 Interface: PCI-E 3.0 x2
    • Form Factor: 2280
    • Key: M-Key
    • Double Height Connector

    Drive Bays
    Hot-swap
    • 4 Hot-swap 3.5" SATA3 drive bays

    Peripheral Drives
    Optional
    • Optional 2.5" drive adapter
    • Optional slim DVD drive

    Backplane
    SAS/SATA HDD Backplane
    (SAS support requires optional SAS controller)

    System Cooling
    Fans
    • 4x 40x28mm 4-pin PWM Cooling Fans
    • Optional 1x 40x28mm PWM fan

    AC/DC240V Input Redundant Power Supplies
    400W 1U Redundant Power Supplies with PMbus
    Total Output Power
    • 400W
    Dimension
    (W x H x L)
    • 54.5 x 40 x 220 mm
    Input
    • 100 - 240Vac / 6.0 - 3.0A / 50-60Hz
    • 200 - 240Vdc / 3.4 - 3.2A (CCC Only)
    +12V
    • Max: 33A / Min: 0.5A
    +5V sb
    • Max: 3A / Min: 0A
    Output Type
    • Gold Finger Connector Mating with Molex 45984-4343
    Certification Platinum Level Certified
    Platinum Level Certified
      [ Test Report ]

    System BIOS
    BIOS Type
    • 8MB SPI Flash EEPROM with AMI BIOS

    Operating Environment / Compliance
    RoHS
    • RoHS Compliant
    Environmental Spec.
    • Operating Temperature:
         10°C to 35°C (50°F to 95°F)
    • Non-operating Temperature:
         -40°C to 70°C (-40°F to 158°F)
    • Operating Relative Humidity:
         8% to 90% (non-condensing)
    • Non-operating Relative Humidity:
         5% to 95% (non-condensing)
    Parts List
    Parts List - (Items Included)

    		 Part Number
    		 Qty
    		 Description
    Motherboard / Chassis MBD-X11SSH-F
    CSE-813MFTQC-R407CB     		1
    1    		 Super X11SSH-F Motherboard
    1U Chassis
    Backplane BPN-SAS3-815TQ 1 1U 4-Port 12Gbps Backplane Support 4x3.5
    Cable 1 CBL-0186L 1 SATA,INT,ROUND,SET OF 4,ST-RA 56/45.5/35/23CM,26AWG
    Cable 2 CBL-CDAT-0661 1 CBL,SGPIO,2X4F TO 2X4F,P2.54,ROUND CABLE,40CM,28AWG
    Parts MCP-120-00031-0N 1 Riser card bracket for SC812,813,813M,815,111,113,113M
    Drive Tray(s) MCP-220-00129-0B 1 Black 2x USB3.0/COM port tray in slim FDD bay
    Air Shroud MCP-310-19007-0N 1 SC811/SC512L/SC512F/SC813M/SC113M/SC513L-410B/SC513L-420B/SC513F, UP X9SRE/I, X9 Mylar Air Shroud, 12"x9.6" MB
    Manual MNL-1779-QRG 1 5019S-M/MR,QRG,HF,RoHS/REACH
    Riser Card RSC-RR1U-E16 1 RSC-RR1U-E16 with PIC-E x16 output
    Heatsink / Retention SNK-P0046P 1 1U PASSIVE CPU HS FOR INTEL LGA1156
    Power Supply PWS-407P-1R 2 AC and DC 240V Input, 400W, Platinum Level, Redundancy power supply meet PMBus Revision 1.2 requirement,RoHS/REACH
    FAN 1 FAN-0154L4 4 40x40x28 mm, 22.5K RPM, SC813MF Middle Cooling Fan,RoHS/REACH
    Optional Parts List

    		 Part Number
    		 Qty
    		 Description
    3.5" to 2.5" Converter Tray MCP-220-00043-0N - Black Hot-swap Gen-4 2.5" to 3.5" HDD tray
    DVD-ROM / DVD-RW DVM-TEAC-DVD-SBT5
    DVM-PLDS-DVDRW-SBT5    		 1
    1    		 TEAC slim DVD-ROM SATA drive
    PHILPS slim DVD-RW SATA drive
    DVD-ROM Accessory MCP-220-81502-0N 1 Slim SATA DVD mounting kit
    Internal 2.5" HDD Tray (FDD slot) MCP-220-83601-0B 1 Black FDD dummy tray support 1x 2.5" slim HDD
    Internal 2.5" HDD Tray (DVD slot) MCP-290-00036-0B 1 Black DVD dummy tray support 1x 2.5" slim HDD
    Cable for internal HDD CBL-0484L
    CBl-0289L    		 2
    1    		 55cm 30AWG SATA straight to straigh cable
    Y split, big 4 pin to two RA SATA power estenstion 30cm
    Hot-swap 2.5" kit (FDD slot) MCP-220-81504-0N 1 Single slim 2.5" SAS3 (12Gb/s) hot swap in slim FDD form factor
    Hot-swap 2.5" kit (DVD slot) MCP-220-81506-0N 1 Single slim 2.5" SAS3 (12Gb/s) hot swap in slim DVD form factor
    Cooling Fan FAN-0154L4 - 40x40x28mm 22.5K RPM, SC813MF Middle Cooling Fan
    Storage Controller card & cable AOC-S3108L-H8iR
    & 1x CBL-SAST-0811
    AOC-S3108L-H8iR-16DD
    & 1x CBL-SAST-0811
    AOC-S3008L-L8i
    & 1x CBL-SAST-0811
    AOC-S3008L-L8e
    & 1x CBL-SAST-0811     		- Standard LP, 8 Internal ports (12Gb/s) PCI-E 3.0 x8,
    RAID controller, RAID 0, 1, 5, 6, 10, 50, 60
    Standard LP, 8 Internal ports (12Gb/s) PCI-E 3.0 x8,
    16HDD RAID controller, RAID 0, 1, 5, 6, 10, 50, 60
    Standard LP, 8 internal ports (12Gb/s) PCI-E 3.0 x8,
    63HDD, RAID 0, 1, 10
    Standard LP, 8 internal ports (12Gb/s) PCI-E 3.0 x8,
    122HDD HBA
    Network Card(s) AOC-SGP-i2
    AOC-SGP-i4
    AOC-STGN-i2S
    AOC-STGF-i2S
    AOC-STG-B4S
    AOC-STGS-i2T
    AOC-S25G-b2S
    AOC-S25G-m2S    		 -
    -
    -
    -
    -
    -
    -
    -    		 Standard LP, 2x GbE RJ45, PCI-E x4, Intel i350-AM2
    Standard LP, 4x GbE RJ45, PCI-E x4, Intel i350
    Standard Lp, 2x 10GbE SFP+, PCI-E x8, Intel 82599ES
    Standard Lp, 2x 10GbE SFP+, PCI-E x8, Intel X710-BM2
    Standard Lp, 4x 10GbE SFP+, PCI-E x8, Broadcom BCM57840S
    Standard Lp, 2x 10GbE RJ45, PCI-E x8, Intel X550-AT2
    Standard LP, 2x 25GbE SFP28, PCI-E x8, Broadcom BCM57414
    Standard LP, 2x 25GbE SFP28, PCI-E x8, Mellanox CX-4 LX
    Front Bezels CSE-PTFB-813LB
    CSE-PTFB-813-02B    		 -
    -    		 Black front bezels
    Black Front Bezel w/ Round Venting Holes
    TPM security module AOM-TPM-9665V
    AOM-TPM-9655V    		 1
    1    		 TPM 2.0, vertical form factor
    TPM 1.2, vertical form factor
    Global Services & Support OS4HR3/2/1
    OSNBD3/2/1    		 -
    -    		 3/2/1-year onsite 24x7x4 service
    3/2/1-year onsite NBD service
    Software SFT-OOB-LIC 1 OOB Management Package (per node license)
    Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)
