    SYS-1029U-TR4

    Print

    Key Features

    • - Virtualization
      - Cloud Computing
      - High End Enterprise Server

    • 1. Dual Socket P (LGA 3647) support 2nd Gen Intel® Xeon® Scalable processors (Cascade Lake/Skylake)‡
    • 2. 24 DIMMs; up to 6TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM,
      Supports Intel® Optane™ DCPMM††
    • 3. 2 PCI-E 3.0 x16 slots (FH, 10.5" L),
      2 PCI-E 3.0 x8 slots (1 LP, 1 internal LP)
    • 4. 4 Gigabit Ethernet ports
    • 5. 10 Hot-swap 2.5" Drive Bays;
      10 SATA3 (2 hybrid ports - 2 NVMe opt.);
      Optional M.2 NVMe and SATA3 ports
    • 6. 8 heavy duty fans w/ optimal fan speed control
    • 7. 750W Redundant Power Supplies Platinum Level (94%+)
    Specifications
    Product SKUs
    SYS-1029U-TR4
    • SuperServer 1029U-TR4 (Black)
    Motherboard

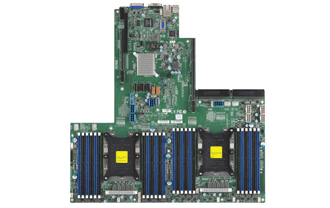

    Super X11DPU
    Processor/Cache
    CPU
    • Dual Socket P (LGA 3647)
    • 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors,
      Dual UPI up to 10.4GT/s
    • Support CPU TDP 70-205W
    Cores
    • Up to 28 Cores
    Note BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R).

    Extended thermal solutions may be required to support CPUs higher than 165W TDP, please contact Supermicro Technical Support for additional information.
    System Memory
    Memory Capacity
    • 24 DIMM slots
    • Up to 6TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM
    • Supports Intel® Optane™ DCPMM††
    Memory Type
    • 2933/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM
    • 2666 ECC DDR4 NVDIMM
    Note 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro
    †† Cascade Lake only. Contact your Supermicro sales rep for more info.
    On-Board Devices
    Chipset
    • Intel® C621 chipset
    SATA
    • SATA3 (6Gbps); RAID 0, 1, 5, 10
    Network Connectivity
    • 4 Gigabit Ethernet ports via AOC-UR-i4G (Intel® i350AM4)
    IPMI
    • Support for Intelligent Platform Management Interface v.2.0
    • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
    Graphics
    • ASPEED AST2500 BMC
    Input / Output
    SATA
    • 10 SATA3 (6Gbps) ports
    SAS
    • 8 SAS3 ports support via optional Add-on Card
    LAN
    • 4 RJ45 Gigabit Ethernet ports
    • 1 RJ45 Dedicated IPMI LAN port
    USB
    • 5 USB 3.0 ports
      (2 rear, 2 front, 1 Type A)
    Video
    • 2 VGA ports (1 rear, 1 onboard)
    Serial Port
    • 1 Serial header
    System BIOS
    BIOS Type
    • AMI 32Mb SPI Flash ROM
    Management
    Software
    Power Configurations
    • ACPI Power Management
    PC Health Monitoring
    CPU
    • Monitors for CPU Cores, Chipset Voltages, Memory.
    • 4+1 Phase-switching voltage regulator
    FAN
    • Fans with tachometer monitoring
    • Status monitor for speed control
    • Pulse Width Modulated (PWM) fan connectors
    Temperature
    • Monitoring for CPU and chassis environment
    • Thermal Control for fan connectors
    Chassis
    Form Factor
    • 1U Rackmount
    Model
    • CSE-119UTS-R751P-T
    Dimensions and Weight
    Height
    • 1.7" (43mm)
    Width
    • 17.2" (437mm)
    Depth
    • 28.5" (724mm)
    Weight
    • Net Weight: 26 lbs (11.8 kg)
    • Gross Weight: 41 lbs (18.6 kg)
    Available Color
    • Black
    Front Panel
    Buttons
    • Power On/Off button
    • System Reset button
    LEDs
    • Power LED
    • Hard drive activity LED
    • Network activity LEDs
    • System Overheat LED / Fan fail LED /
      UID LED
    Expansion Slots
    PCI-Express
    • 2 PCI-E 3.0 x16 (Full-height, 10.5" L)
    • 2 PCI-E 3.0 x8 (1 LP, 1 internal LP)


    • (Both CPUs need to be installed for full access to PCI-E slots and onboard controllers. See manual block diagram and AOC Support for details.)
    Drive Bays / Storage
    Hot-swap
    • 10 Hot-swap 2.5" drive bays; 10 SATA3 (2 hybrid ports - 2 NVMe opt.)
    M.2
    • 1 M.2 PCI-E 3.0 x4 M-Key NVMe or 1 M.2 M-Key SATA3 (2240/2260/2280/22110) via optional riser card (see optional parts list)
    • 2 M.2 PCI-E 3.0 x4 M-Key NVMe (2260/2280/22110) via optional add-on card AOC-SLG3-2M2
    System Cooling
    Fans
    • 8 heavy duty fans with optimal fan speed control
    Air Shroud
    • 1 Air Shroud
    Power Supply
    750W Redundant AC-DC Power Supplies, +12V/+12Vsb output
    AC Input
    • 100-127Vac, 50-60Hz
    • 200-240Vac, 50-60Hz
    +12V
    • Max: 62.5A & Min: 0A (100Vac-127Vac)
    • Max: 62.5A & Min: 0A (200Vac-240Vac)
    12V SB
    • Max: 2.1A
    • Min: 0A
    Certification Platinum Level Certified94%+ Platinum Level

    [ Test Report ]
    Operating Environment
    RoHS
    • RoHS Compliant
    Environmental Spec.
    • Operating Temperature:
      10°C ~ 35°C (50°F ~ 95°F)
    • Non-operating Temperature:
      -40°C to 70°C (-40°F to 158°F)
    • Operating Relative Humidity:
      8% to 90% (non-condensing)
    • Non-operating Relative Humidity:
      5% to 95% (non-condensing)

    Parts List
    Parts List - (Items Included)
    Part Number
    Qty
    Description
    Motherboard / Chassis MBD-X11DPU
    CSE-119UTS-R751P-T
    1
    1
    Super X11DPU Motherboard
    CSE-119UTS-R751P-T Chassis
    Add-on Card / Module AOC-UR-I4G 1 1U Ultra Riser based on Intel i350AM4 controller with 4 GbE RJ45 ports and 1 internal PCI-E x8 3.0 slot
    Backplane BPN-SAS3-116A-N2 1 10-port 1U SAS3 12Gbps Hybrid backplane, support up to 8x 2.5-inch SAS3/SATA3 HDD/SSD and 2x SAS3/SATA3/NVMe Storage Devices
    Optional Parts List Cable 1 CBL-PWEX-0650 1 8 pin female to 2x RA(Right Angle) big 4 pin female power, 47/62CM, 18AWG,RoHS/REACH
    Cable 2 CBL-PWEX-0653 1 8 pin female to 4 pin female power, 37cm, 18AWG,RoHS/REACH
    Cable 3 CBL-SAST-0655 1 MINI SAS HD(ST)-MINI SAS(RA-RS EXIT),6G,INT,47CM,SB,30AWG
    Cable 4 CBL-SAST-0657 1 MINI SAS HD(ST)-MINI SAS(RA-RS EXIT),6G,INT,55CM,SB,30AWG
    Cable 5 CBL-SAST-1015-1 1 MINI SAS-2 SATA (RA),6G,INT,52CM,62CM SB,30AWG,RoHS
    FAN 1 FAN-0101L4 8 40x56,4 Pin PWM,Primary for SC809,111, Sec.for SC816,819,808
    Air Shroud MCP-310-81910-0N 1 Plastic air shroud for SC819U, 119U (X11 24DIMM, left side)
    Air Shroud MCP-310-81911-0N 1 Plastic air shroud for SC819U, 119U (X11 24DIMM, right side)
    Riser Card RSC-R1UW-2E16 1 1U LHS WIO Riser card with two PCI-E x16 slots
    Riser Card RSC-R1UW-E8R 1 1U RHS WIO Riser card with one PCI-E x8 slot
    Heatsink / Retention SNK-P0067PS 2 1U Passive CPU Heat Sink for X11 Purley Platform Equipped with a Narrow Retention Mechanism
    * Power Supply PWS-751P-1R 2 1U 750W Redundant Platinum Single Output Power Supply w/Pmbus W73.5xH40xL203mm,RoHS/REACH
    Notes:
    1. Parts with * are inside the chassis
    2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
    Optional Parts List
    Part Number Qty Description
    Add-on card for internal M.2 NVMe AOC-SLG3-2M2 1 Low Profile PCI-E x8 add-on card supports 2 PCI-E 3.0 x4 M-Key M.2 NVMe Modules
    Internal Drive Tray for Two 2.5" Drives MCP-120-82916-0N
    CBL-PWEX-0650
    CBL-0080L
    CBL-0484L Or
    CBL-SAST-0654 Or
    CBL-SAST-0948
    1
    1
    2
    2
    1
    1
    Internal drive plate Supports Two 2.5" Drive, PCI slots
    Power cable for Two internal 2.5" drives

    SATA3 S-S Cable
    miniSAS(iPass) to 4 SATA Cable
    miniSAS HD to 4 SATA Cable
    Cable for 2 NVMe Hybrid Drive Bays CBL-SAST-0929 2 OCuLink source to MiniSAS HD target V.91,INT,PCIe NVMe SSD, 57CM,34AWG
    2.5" NVMe Drive Trays MCP-220-00167-0B
    MCP-220-00127-0B
    1~2 Tool-less black hot-swap 2.5" NVMe drive tray (Orange tab, w/ key lock, clip design)
    Black hot-swap 2.5" NVMe drive tray (Orange tab, w/ key lock)
    2 Internal M.2 slots (1 SATA, 1 NVMe) RSC-UMR-8 &
    CBL-SAST-0538
    1 1U Ultra RHS Riser Card with 1 PCIE/SATA Hybrid M.2 &1 PCIE X8
    Storage Control Card and Cable(s) AOC-S3008L-L8e &
    2x CBL-SAST-0593
    AOC-S3008L-L8i &
    2x CBL-SAST-0593
    AOC-S3108L-H8iR &
    2x CBL-SAST-0593
    AOC-S3108L-H8iR-16DD & 2x CBL-SAST-0593
    1 Std LP, 8 internal ports, 12Gb/s per port- Gen3, 122HDD, HBA; MINI SAS HD SATA,12G,INT,60CM,60CM SB,30AWG
    Std LP, 8 internal ports, 12Gb/s per port- Gen3, 63HDD, RAID 0,1,1E; MINI SAS HD,12G,INT,60CM,30AWG
    Std LP, 8 internal ports, 12Gb/s per port- Gen3, 240HDD, RAID 0, 1, 5, 6, 10, 50, 60; MINI SAS HD,12G,INT,60CM,30AWG
    Std LP, 8 internal ports, 12Gb/s per port- Gen3, 16HDD, RAID 0, 1, 5, 6, 10, 50, 60; MINI SAS HD,12G,INT,60CM,30AWG
    Network Card(s) AOC-SGP-i2/4
    AOC-STGN-i1S/i2S
    AOC-STGF-i2S
    AOC-STG-i4S
    AOC-STG-b4S
    AOC-STG-i2T
    AOC-STGS-i1/2T
    AOC-STG-i4T
    AOC-STG-i2
    AOC-S25G-m2S
    AOC-S40G-i2Q
    More
    -
    -
    -
    -
    -
    -
    -
    -
    -
    -
    -
    -
    Standard LP, 2/4x GbE RJ45, PCI-E x4, Intel i350
    Standard LP, 1/2x 10GbE SFP+, PCI-E x8, Intel 82599EN
    Standard LP, 2x 10GbE SFP+, PCI-E x8, Intel XL710-BM2
    Standard LP, 4x 10GbE SFP+, PCI-E x8, Intel XL710
    Standard LP, 4x 10GbE SFP+, PCI-E x8, Broadcom BCM57840S
    Standard LP, 2x 10GbE RJ45, PCI-E x8, Intel X540
    Standard LP, 1/2x 10GbE RJ45, PCI-E x8, Intel X550
    Standard LP, 4x 10GbE RJ45, PCI-E x8, Intel XL710
    Standard LP, 2x 10GbE CX4, PCI-E x8, Intel 82598EB
    Standard LP, 2x 25GbE SFP28, Mellanox ConnectX-4 LX EN
    Standard LP 2-port 40GbE controller, Intel Fortville XL710
    AOC Compatibility Matrix
    CacheVault(s) BTR-CV3108-1U1
    BTR-TFM8G-LSICVM02 & BKT-BBU-BRACKET-05
    -
    -
    CacheVault for Broadcom 3108 with Supercap mounting in 1U 40x56 fan tray
    CacheVault for Broadcom 3108; Supercap mounting bracket for PCI-E location
    1U Cable Management Arm MCP-290-00152-0N 1 1U Supermicro Cable Management Arm 2nd Gen
    TPM security module AOM-TPM-9670H-S
    AOM-TPM-9671H-S
    1
    1
    TCG 2.0 compliant trusted platform module (TPM), Horizontal FF
    TCG 1.2 compliant trusted platform module (TPM), Horizontal FF
    Intel VROC RAID Key AOC-VROCINTMOD
    AOC-VROCSTNMOD
    AOC-VROCPREMOD
    1
    1
    1
    Intel VROC, RAID 0, 1, 5, 10 (Intel SSD Only)
    Intel VROC Standard, RAID 0, 1, 10
    Intel VROC Premium, RAID 0, 1, 5, 10
    Global Services & Support OS4HR3/2/1
    OSNBD3/2/1
    -
    -
    3/2/1-year onsite 24x7x4 service
    3/2/1-year onsite NBD service
    Software SFT-OOB-LIC 1 OOB Management Package (per node license)
    Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)
